13.3inch 12.8mm 1080P Small Camera 5.3mm Cable 512Hz Sewer Pipe Ventilation Systems Camera

Key Features:

l  Inspect lines from 1”to 4”(20mm-100mm)

l  12.8mm(0.50”) 1080P detachable double waterproof camera head

l  Optional 512Hz transmitter

l  13.3inch color monitor with 1080P resolution

l  All-digital recording by external storage SD Card/ USB driver to store still pictures or videos.

l  30M(98”) longest, 5.3mm(0.21) push rod 30/20/10M(33-98ft) optional

l  Solid yet lightweight and multifunctional frames

l  Durable & field replaceable push rod resists kinking

l  Powered with either wall charger or build-in battery

Information:

This 720P pipe inspection camera system is with compact, rugged, portable and humanized design for efficient operation

in sewer, drain, duct ,chimney, milk pipes, water mains,central air conditioning, heating system, pipe sventilation systems

plumbing related sites and where a pipe inspection camera is required.

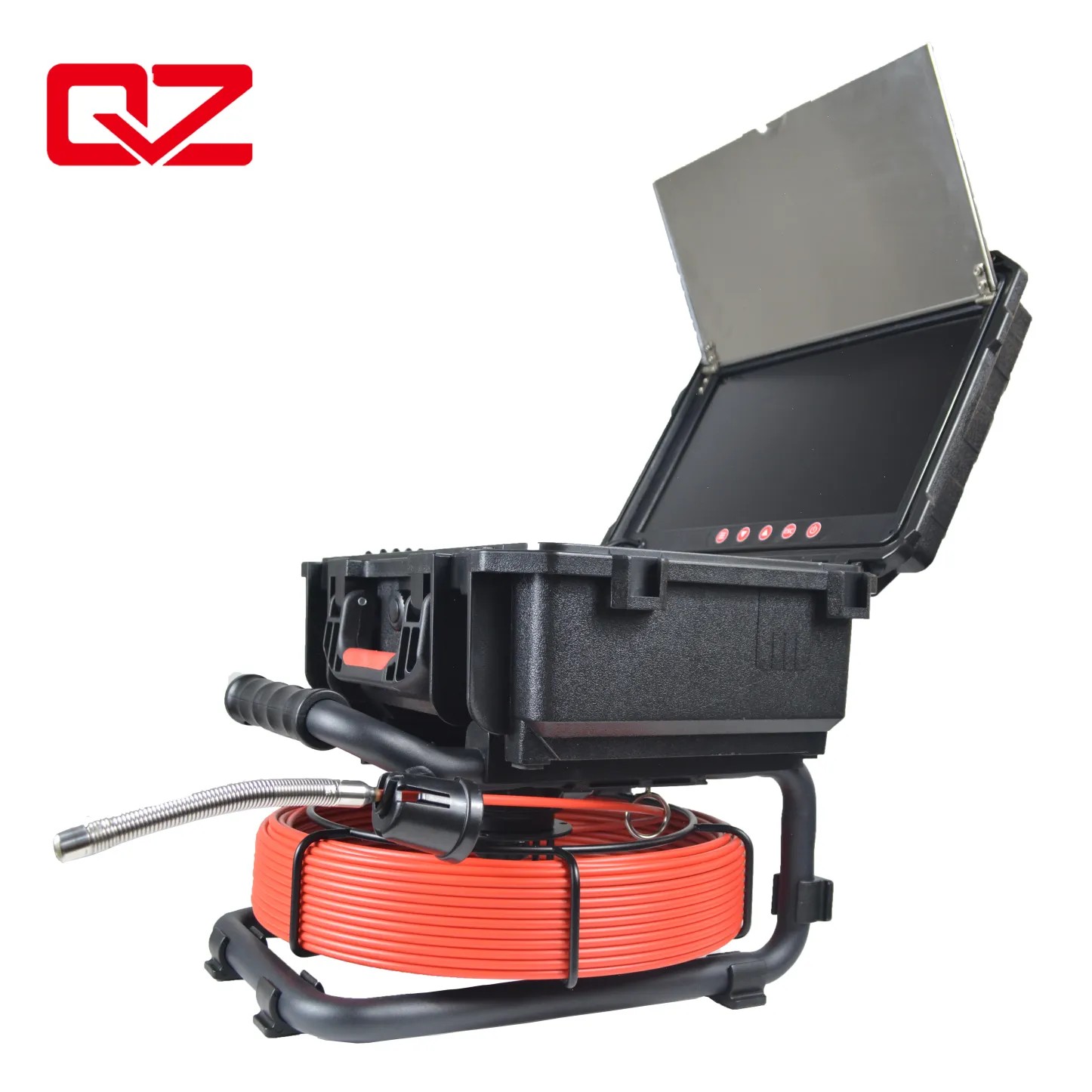

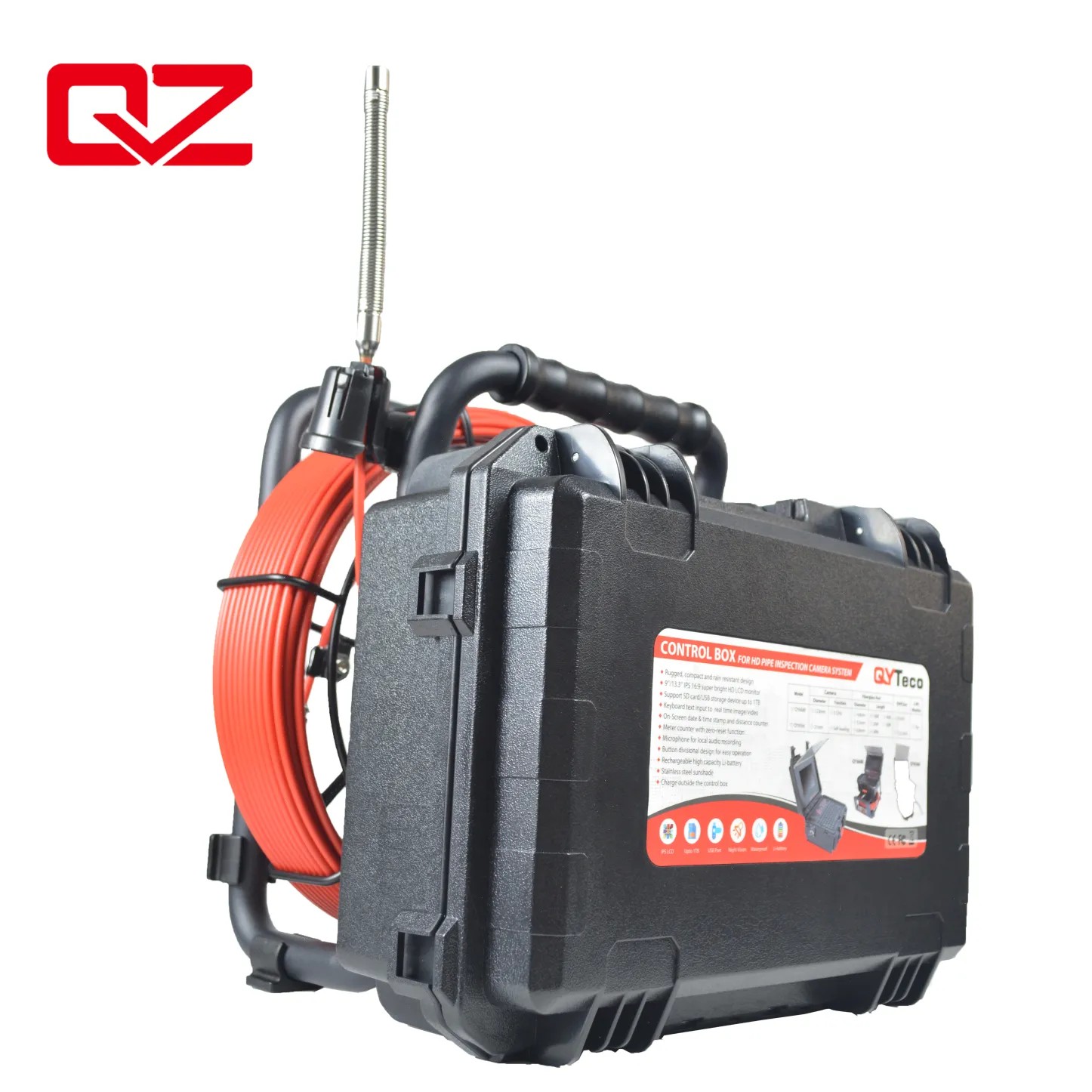

It consists of three main parts:

1. control box with 13.3inch big IPS DVR and wireless keyboard for text input;

2. Metal frame with automatic padlock;

3. Cable reel with meter counter equipment, fiberglass push rod and  12.8mm 1080P Camera(sapphire lens).

4. It is suitable for pipes with inner diameter at 20mm-100mm. Ability to go through 90° bends in pipe.

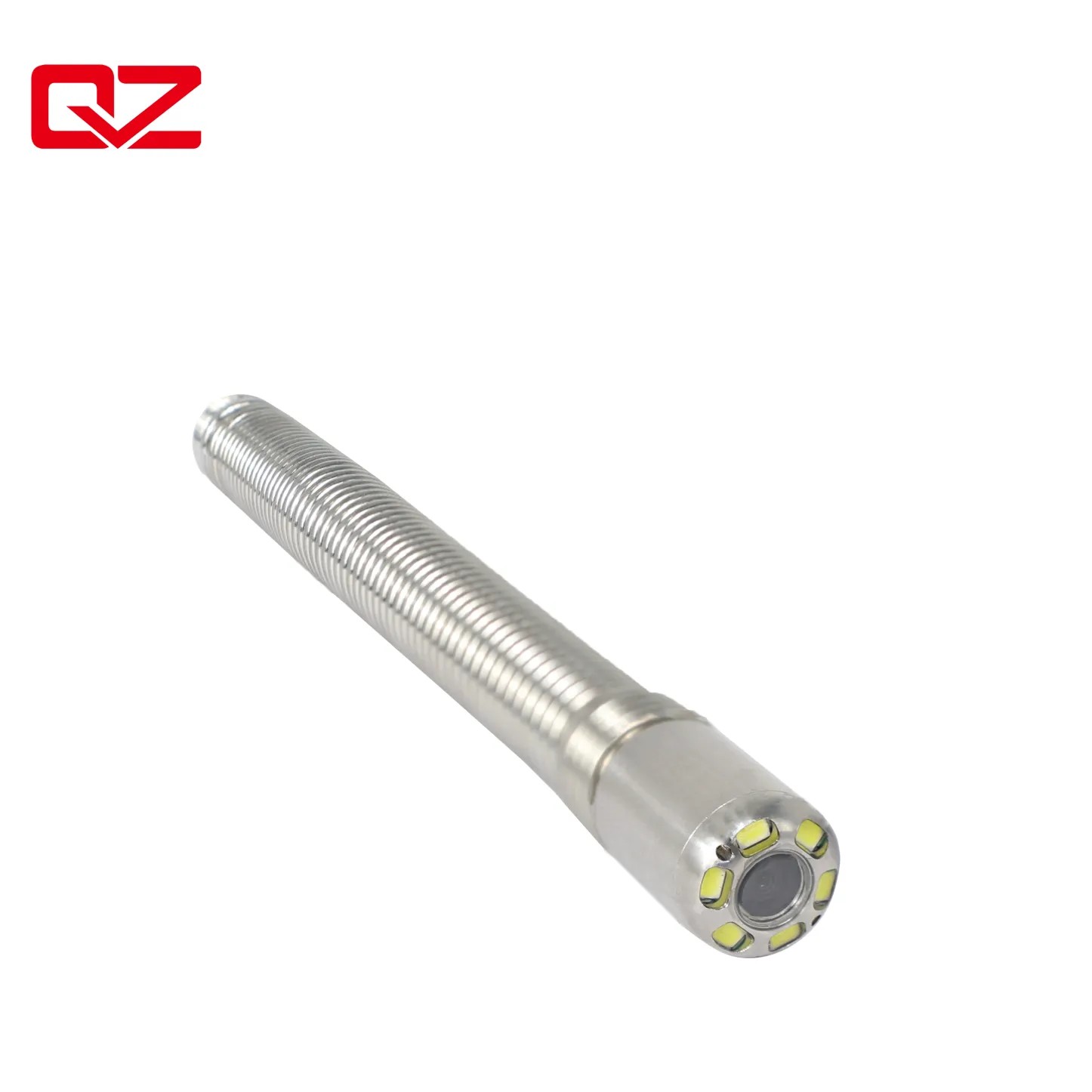

Camera

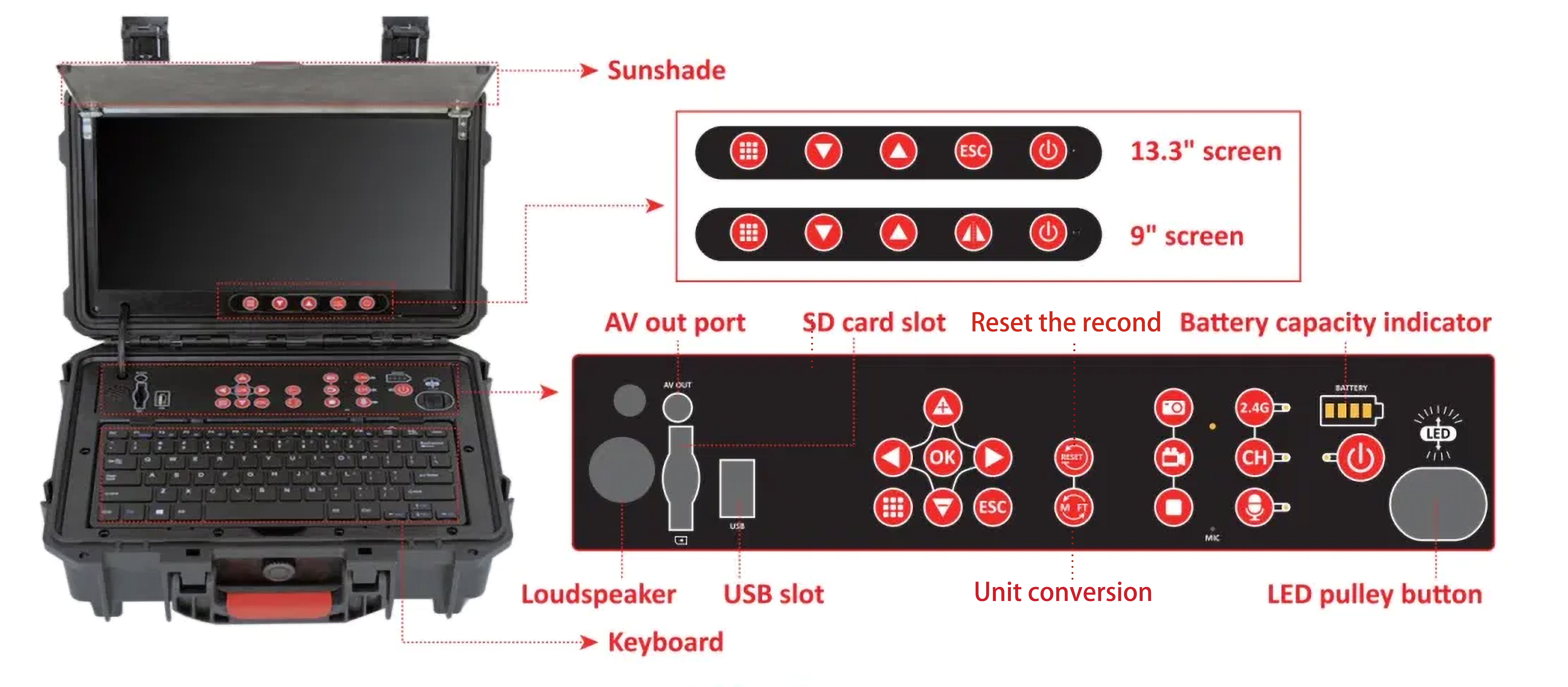

Control Box: Features and design

1.Control box installed on the metal frame is fool proof design with automatic padlock function, no need extra action to lock the control box.

2.Power charge port with LED indicator light is out of the toolbox, no need to open the toolbox to charge.

3.The power input port on the cable reel is designed on the side of the spindle in stead of on the top the spindle to prevent the water and dust accumulation.

4.There are pothooks on the toolbox, two pothooks on the left side, the other two pothooks on the right side, and the pothook can be changed the directions.

5.The plastic button placement is to connect the toolbox and the metal frame, which can protect the metal frame and prevent the friction sound.

6.The cable clip is designed on the module of the plastic button placement to keep the cable tidy, no need the extra tying.

7.The handle of the toolbox is overmolding design and the handle of the metal frame is humanized designed with a plastic handle,

which is convenient carrying and comfortable hand feeling.

8.The bottom metal plate is integral cast formed, which is solid and high strength, to prevent the cable reel scratched and stuck.

9.The 12.8mm 720P camera head is NOT detachable BUT it can change the whole camera part .

10.The 12.8mm 720P camera can choose 512Hz sonde.

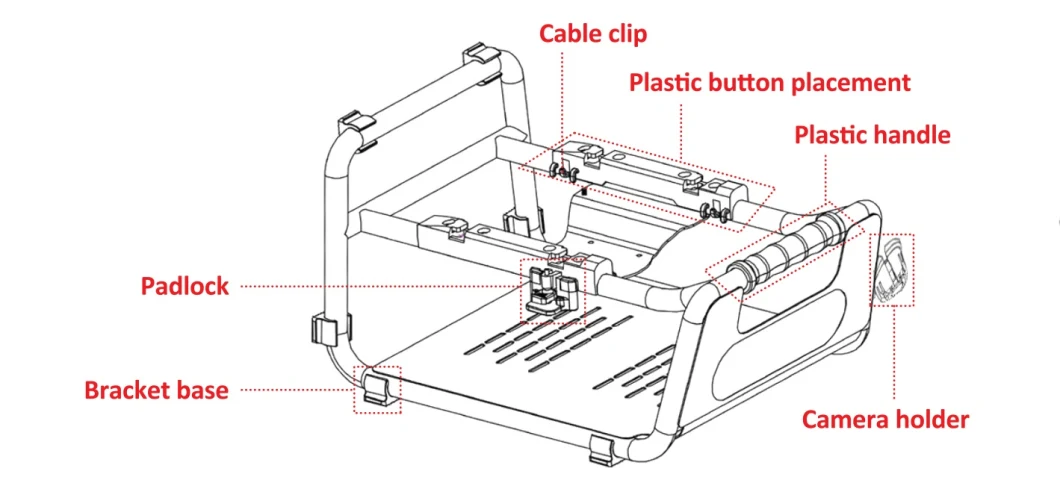

Support Frame:

Padlock: fool proof design with automatic padlock function, no extra action required to lock the control box.

Camera Holder: multi-function holder to stop both camera and cable

Plastic Handle: easy for people to grab and move Cable

Notes:

Please contact us for a full quotation based on your required custom system configuration including camera and cable diameter, cable length, control box screen size and sonde requirement.

An example is listed below:

1. Camera: 12.8mm diameter

2. Cable Diameter: 5.3mm in red

3. Cable Length: 30M

4. Screen Size: 13.3inch

5. 512 Hz sonde（optional )  without locator
