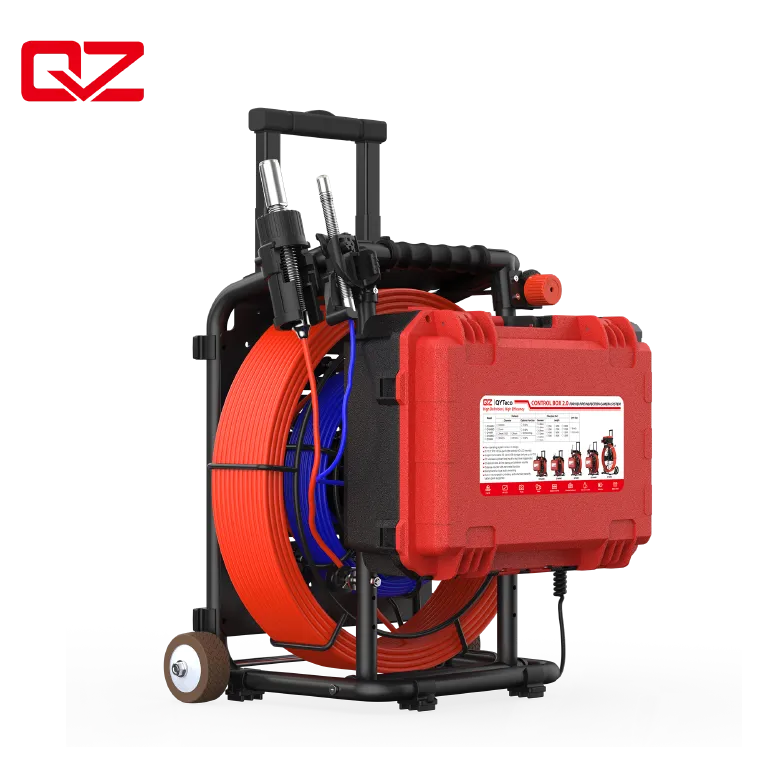

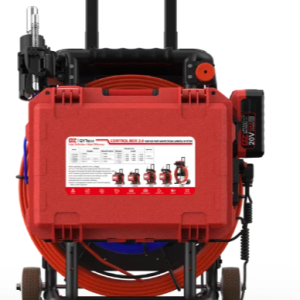

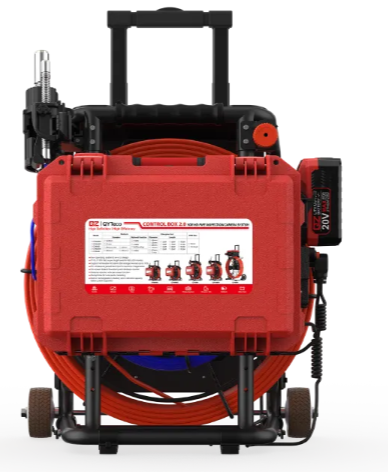

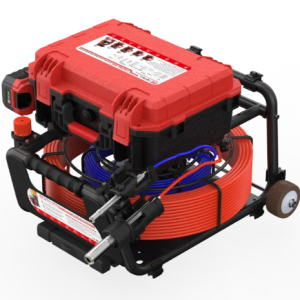

QY6688D 13.3″ 21/12.8mm Camera with 50M 6.8mm/30M 4.8mm Push Rod Compact Pipe Inspection System for Drains and Plumbing Lines
QY6688D Dual Reel 13.3″ 21/12.8mm Camera with 50M 6.8mm/30M 4.8mm Push Rod Compact Sewer Cameras
New Products Launched! – New design and Market Debut – Big Push Rod Sewer Cameras
QYTeco 2025 New Products Launch – New Design & Market Debut

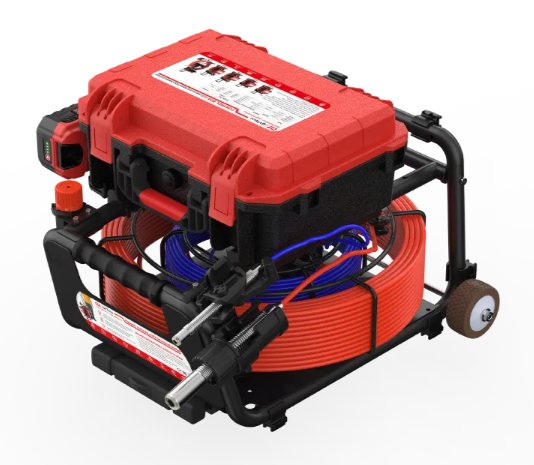

- Dual Reel Compact Sewer Cameras
- Equipped with dual cable reels and dual camera systems, greatly improving detection capabilities and range.
- Equipped with two multi-functional camera holders for efficient and convenient operation while protecting cameras
- Type: Dual Reel Compact Sewer Cameras
- Sensor Size: 1/4” COMS (12.8mm camera head) , 1/3” COMS (21mm camera head)
- Application: Water Mains, Sewer, Pipe Inspection, Central Air Conditioning
- Feature: 120° Wide Viewing Angle (21mm head) , 100°Wide Viewing Angle (12.8mm)
- Video Capture System: CMOS
- Horizontal Resolution: 21mm-1920 x 1080 , 12.8mm-1920 x 1080
- Camera head: 12.8/21mm 304 stainless steel
- Application: Sewer Camera, Water Mains, Sewer, Pipe Inspection, Central Air Conditioning
Removable, Replaceable, Detachable Camera Head for Field Service
Equipped with multi-functional skids for efficient and convenient operation while protecting cameras with brand new external battery pack.
Description

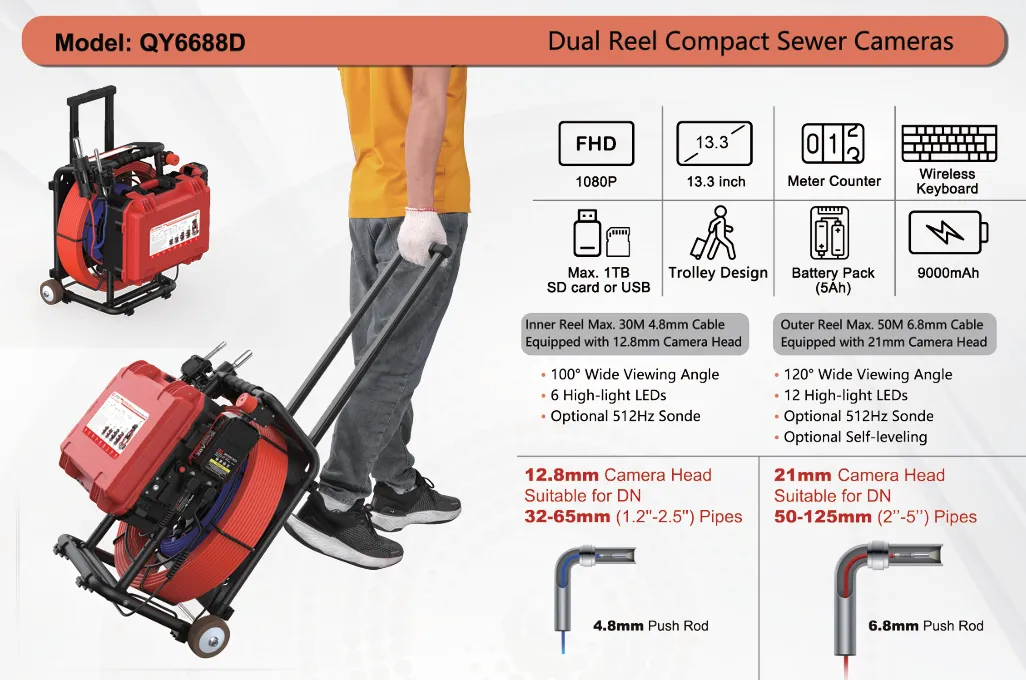

Model： QY6688D Details
- Inner Cable 30M 4.8mm Cable
- Equipped 12.8mm Camera Head
- 1″- 2″ (30mm—60mm)
- Outer cable 50M 6.8mm Cable
- Equipped 21mm Camera Head
- 2″- 5″ 50mm——125mm
Optional 512 Hz sonde and Self-leveling
Removable, Replaceable Detachable Camera Head for easy Field Service
Equipped with two multi-functional Holders for efficient and convenient operation while protecting cameras with brand new external battery pack.

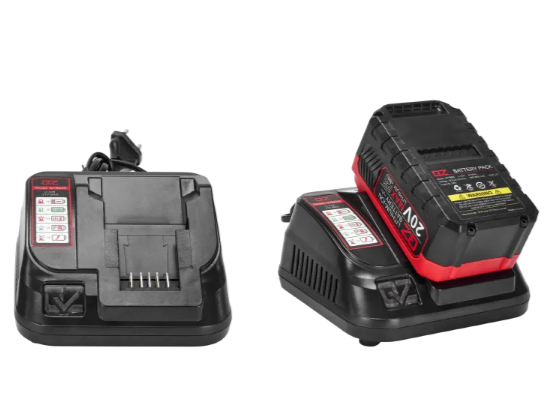

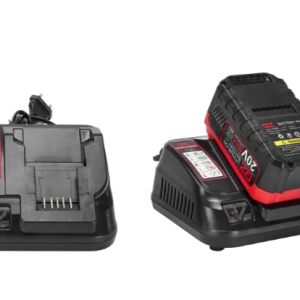

Battery Pack (Optional Part)
- 4 Level Battery Indication
- 2 hours of charging, 9 hours of using
- Voltage: 18.5～20.5V (MAX)
- Capacity: 4.5Ah
- Energy: 92.5W/H
Super Charger (Optional Part)
- Input voltage: AC110V~240V
- Frequency: 50~60Hz
- Output power: 84W
- Output voltage: DC-21V
- Output current: 4A
Brake
- A handy brake system
- Turntable design
- Easy to control the reel not spinning on
Spinner Wheels and Level Telescopic Handle
Spinner Wheels:
- Double Spinner Wheels Design
- Shock Absorption Technology
- Anti-slip and Anti-corrosion Technology
Level Telescopic Handle:
- Double Gear Adjustment
- First Gear: 25cm Second Gear: 50cm
Ergonomic design
- Padlock: fool proof design with automatic padlock function, no need for any extra action to lock the control box.
- Camera Holder: multi-function holder to stop both camera and cable
- Plastic Handle: allow people to grab the cable easily
CONTACT US FOR OPTIONS AND PRICING
1. Metal frame x 1
2. Inner cable reel 30M 4.8mm with 12.8mm camera head x 1
3. Outer cable reel 50M 6.8mm with 21mm camera head x 1
3. Control box with DVR & wireless keyboard x 1
4. Connection cable x 2
5. Screwdriver x 1
6. 46/78mm skid for 21mm camera head x 1
25mm skid for 12.8mm camera head x 1
7.Screw and nut x 7
8.Waterproof ring x 12
9. User Manual x 1
10. Pothook x 2
11. DC12V Power supply x 1
12. Car charger x 1
13. AV cable x 1
